60mm Head Plastic Insulation Fixing Anchors

Name: 60mm Head Plastic Insulation Fixing Anchors
Brand: HUIHAOCUSTOM
Price: 1 USD

Wholesale 60mm Head Plastic Insulation Fixing Anchors from china suppliers

Brand Name : HUIHAOCUSTOM

Model Number : XY-P-60

Certification : ISO9001-2015

Place of Origin : China

MOQ : 10000 pcs

Payment Terms : L/C, D/A, T/T, Western Union, D/P

Supply Ability : 10000 pcs oer hour

Delivery Time : 10 work days

Packaging Details : 500 PCS per carton

Name : Plastic Insulation Fixing Anchors

Type : Wall Anchor

Length : 20 - 250MM

Capacity : Strong

Material sources : nylon,plastic

tools : shooting gun

washer size : 60mm round base

manufcturer : HEBEI XIANGYI

Contact Now

Gas Fastening Tools 60mm Head Diameter Plastic Insulation Fixing Anchors

Specification details of the plastic insulation fixing anchors

Steel Nail Size	length	Color	round base washer
3.7*38mm	20mm	White / Black	60mm
3.7/42mm	30mm	White / Black	60mm
3.7/42mm	40mm	White / Black	60mm
3.7/4.0*52/54mm	50mm	White / Black	60mm
3.7/4.0*52/54mm	60mm	White / Black	60mm
3.7/4.0*52/54mm	70mm	White / Black	60mm
3.7/4.0*52/54mm	80mm	White / Black	60mm
3.7/4.0*52/54mm	90mm	White / Black	60mm
3.7/4.0*52/54mm	100mm	White / Black	60mm
3.7/4.0*52/54mm	110mm	White / Black	60mm
3.7/4.0*52/54mm	120mm	White / Black	60mm
3.7/4.0*52/54mm	130mm	White / Black	60mm
3.7/4.0*52/54mm	140mm	White / Black	60mm
3.7/4.0*52/54mm	150mm	White / Black	60mm
3.7/4.0*52/54mm	160mm	White / Black	60mm
3.7/4.0*52/54mm	180mm	White / Black	60mm
3.7/4.0*52/54mm	200mm	White / Black	60mm
3.7/4.0*52/54mm	250mm	White / Black	60mm

Plastic insulation fixing anchors application - Wall Thermal Insulation System

Plastic Insulation fixing Anchor With Steel Drive Pins, Construction Wall Heat Preservation Nail	1. consists of insulation fastener and drive pin 2. insulation fixing anchors which is made of 100% original raw material has the characteristics of not combustion-supporting;it has the unique design of tooth shape that can efficoently isolate the drive pin and mortar;stop the heat bridge effect 3. adopting the patented step shank design can get the best value of drive pin's penetrability and reduce the destructiveness to the base material;we use high steel to manufacture the drive pins which ensure the nail body high strength, high tenacity and fastening much saferand more reliable
general suitability in concrete	when a fastener is driven into concrete, the concrete around the anchor shank us displaced, this displaced concrete commpresses against the shank creating a friction gold. on addition, heat generated during the driving process, causes a sintering of the concrete to the fastener. 1.the fastening effect will be affected by the following factors 2.compressive strength of concrete 3.fastener shank diameter 4.concrete grade
fastening features in steel	when plastic insulation fixing anchors is driven into steel, the steel around the fastener shank is displaced. the displaced steel flows back around the shank and into the knuring creating a keying or in the case of smooth shank fasteners a friction hold.in addition, the heat generated druing the driving process, at tempartatures of approximately 900 degree, causes partial fusion of the fastener to the steel. a fastener driven into steel os influenced by the following factors: 1.base steel thickness 2.thesile strength of base steel 3.fastener spacing and edge distance 4. fastener shank diameter

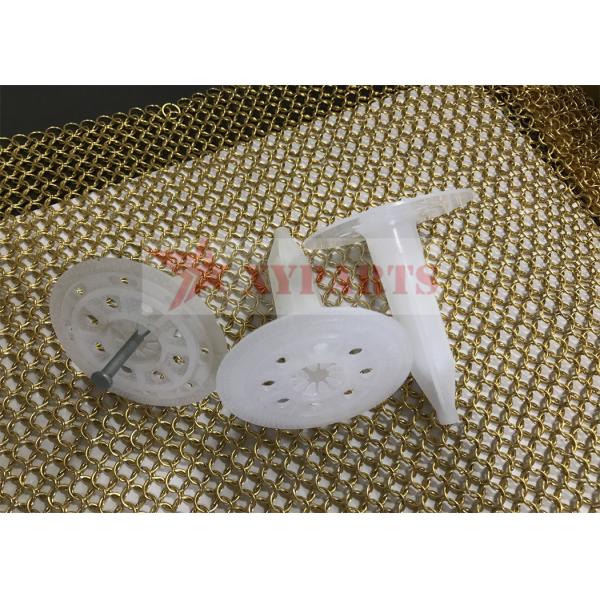

Image details of the plastic insulation fixing anchors

60mm Head Plastic Insulation Fixing Anchors

HEBEI XIANGYI METAL PRODUCT CO LIMITED

Rich resources of series products and better solutions
Competitive price directly from factory with high quality
OEM Service
Professional working team and quick response
Small order acceptable

60mm Head Plastic Insulation Fixing Anchors
